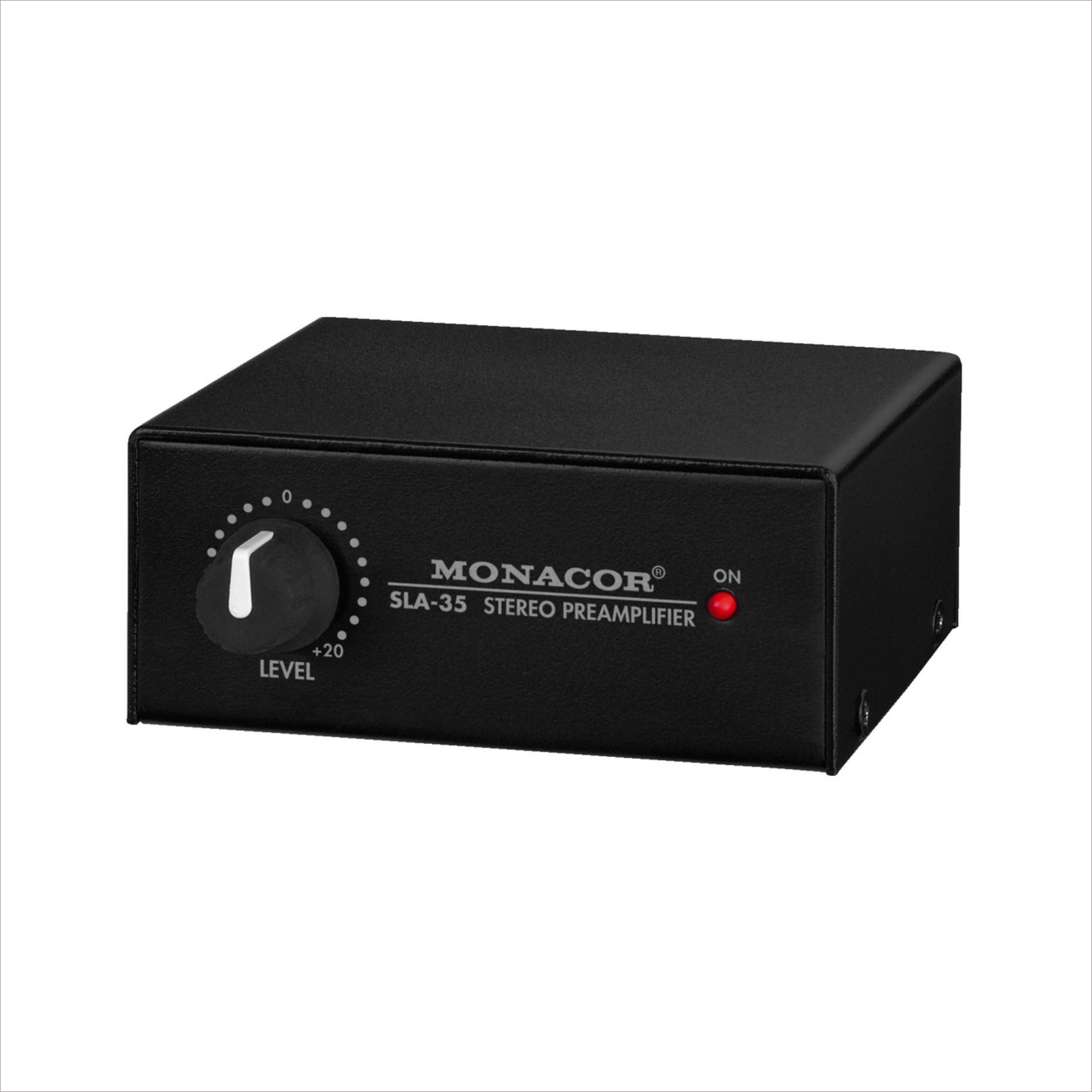

Stereo level and impedance matching amplifier Volume distortions or volume losses may occur when connecting smartphones, mobile phones, tablet PCs and MP3 players to an amplifier or a mixer. Due to the correct setting of impedance and gain, the SLA-35 is able to provide a better sound.
Adjustable attenuation down to 1/10 (-20 dB) or gain up to 10-fold (+20 dB)
Impedance switching Hi/Lo
RCA and 3.5 mm stereo inputs and outputs
Metal housing
Supplied with plug-in PSU
TECHNICAL DATA: | |
Type | converter |
Frequency range | 3-50,000 Hz |
Control range |
|
Control frequencies |
|
Input signal | 7 V max. |
Input sensitivity | - |
Input impedance | 35 kΩ/8.1 kΩ (switch -5.6 dB) |
Output signal | max. 4.5 V/1.6 kΩ |
Output impedance |
|
Gain | 0.1-10 (±20 dB) continuously adjustable, additionally -5.6 dB, switchable |
Phantom power |
|
Compression |
|
Gate ratio |
|
Crossover frequency |
|
High-pass filter |
|
Low cut |
|
Transmission ratio |
|
S/N ratio | > 83 dB |
Channel separation | > 68 dB |
THD | < 0.03% |
Admiss. ambient temp. | 0-40 °C |
Power supply | via suppl. PSU |
Dimensions | 88 x 37 x 103 mm |
Weight | 450 g |
Inputs | 1 x RCA L/R, 1 x 3.5 mm jack |
Outputs | 1 x RCA L/R, 1 x 3.5 mm jack |
