This system provides a single zone PA system solution for retail, café, factory or warehouses.
The system comes complete with a paging microphone and 30 watt Mixer Amplifier that has the facility to connect up to two microphones & one line level audio source.
This package is offered excluding any microphone or music sources so that you can mix & match the system to your requirement. Please contact our office on 0161 872 7001 if you want any further information or advise.
The speakers are wired using the 100v system; this means that wiring to the speakers is as simple as possible. Installation can be carried out by a competent handyman or electrician or you can ask Refresh AV for a quotation for installation by our qualified engineers.

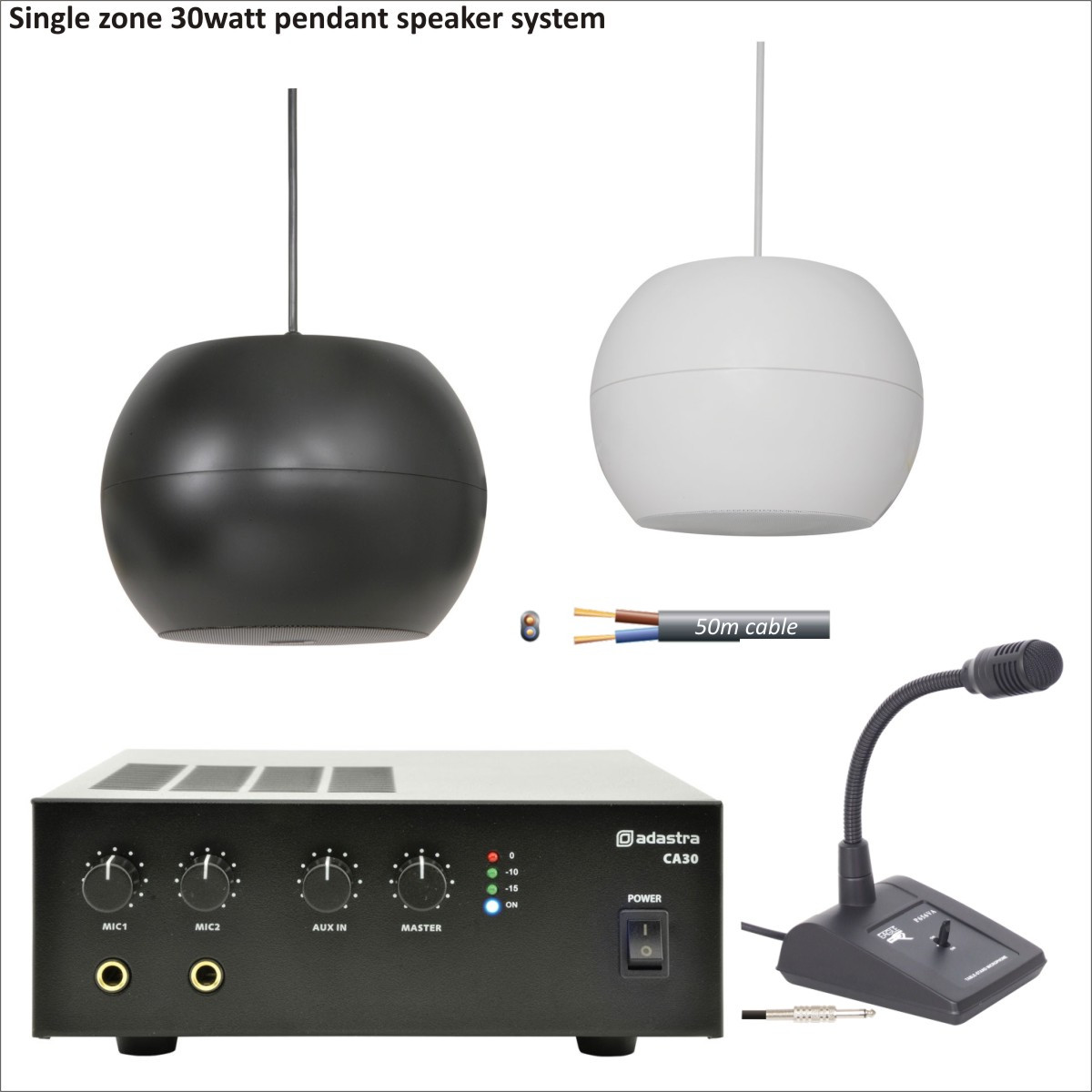

System includes as standard:
1 x 1 x CA30 CA Series Compact 100V Line Mixer-amplifiers (953.103)
2 x PS50 Pendant speaker 12.5cm (5") (952.426/7)
1 x 50m Speaker cable in black or white
1 x 3.5mm to stereo phono for connection to audio source
100V line amplifiers with an integral mixer in a half width 2U housing. Inputs for microphones and line input are governed by front panel volume controls with a mixed line output. Mono output to either 100V line or 8 ohms speaker load is connected via a screw terminal connector on the rear panel. Providing cost-effective public address in small to medium installations.
CA Series Compact 100V Line Mixer-amplifiers
- Inputs for microphones and auxiliary line
- 100V or 8 Ohms operation
- Output power 30Wrms
- Dimensions 255 x 220 x 84mm

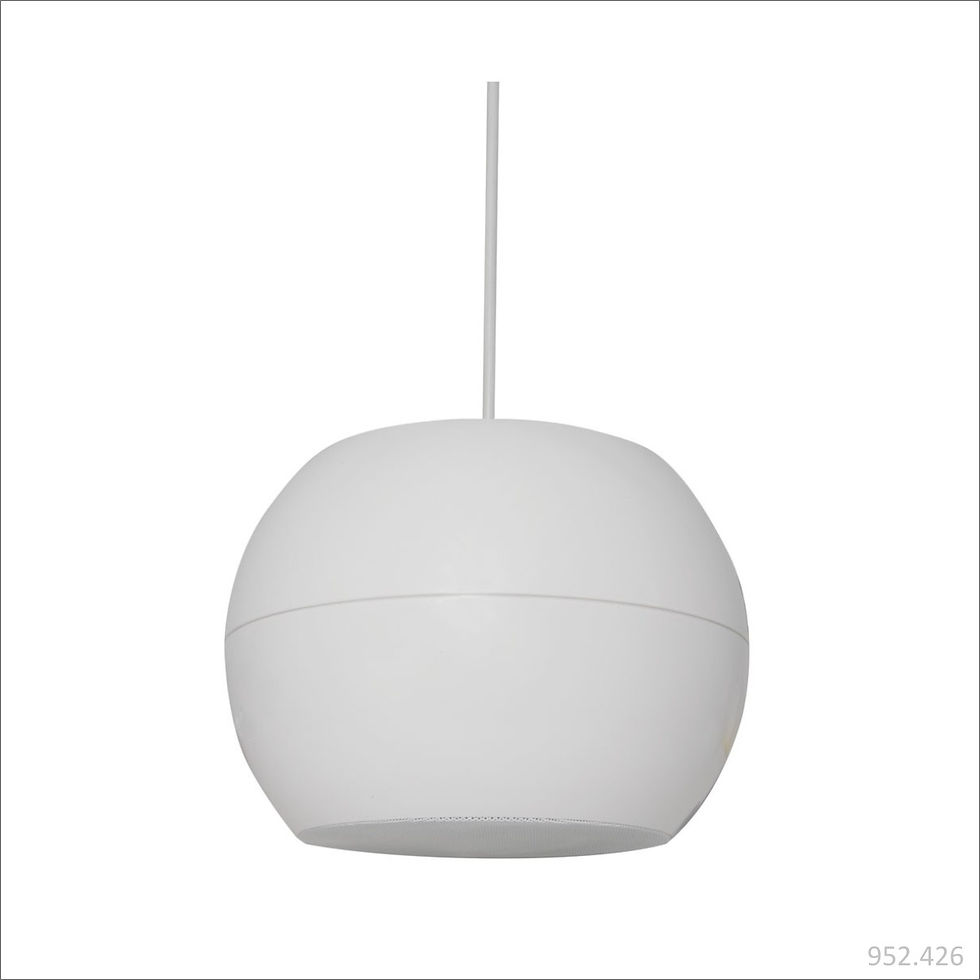

PS Series Pendant Speakers - Wide Angle
Wide dispersion spheroid 2-way pendant speakers for use with high ceilings where regular ceiling speakers would be positioned too high to be efficient. Each has a rotary switch on top for selecting 100V line tappings and 8 ohms operation.
- Supplied with 4.5m cable and cable hook for hanging
- Selector for 4 x 100V line tappings + 8 ohms
- 100v tappings 20W, 10W, 5W,2.5W + 8 Ohms
- Dimensions 180 x 245mmØ
- Available in black or white
