This system provides a two zone background music solution for small bars, restaurants, pubs, cafes & retail outlets. The system comes complete with a 120watt Mixer Amplifier, inputs include a balanced XLR for microphone with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs, of which one can be fed from the internal USB/SD player with built-in FM tuner and Bluetooth receiver.
This package is offered excluding any microphone or music sources so that you can mix & match the system to your requirement. Please contact our office on 0161 637 6544 if you want any further information or advise.
The speakers are wired using the 100v system; this means that wiring to the speakers is as simple as possible. Installation can be carried out by a competent handyman or electrician or you can ask Refresh AV for a quotation for installation by our qualified engineers.
System includes as standard:
1 x RM120B mixer-amplifier 100V + Bluetooth®
8 x Adastra WSP25 Projection Speakers (952.942/943)
1 x Desk top paging microphone
1 x 100m Speaker cable in black or white
2 x Volume attenuators
1 x 3.5mm to stereo phone for connection to audio source
System options: (To be ordered separately)
Radio microphones
Multi CD Player
Hard drive music player
FM Tuner
Ipod dock
Volume attenuator to add additional speaker zone
RM Series 5 Channel 100V Mixer Amps with Bluetooth®
100V amplifiers with integral 5 channel mixer in a 2U rack-mountable housing. Inputs include a balanced XLR for microphone with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs, of which one can be fed from the internal USB/SD player with built-in FM tuner and Bluetooth receiver. Bass & Treble EQ and Master volume control the overall output, which can power either 8 Ohms or 100V line speakers. Generous features and versatility provide a comprehensive control centre for commercial sound installations.
5 channel mixer
Integral USB/SD audio player
Integral FM tuner
Bluetooth connectivity
External D.C. power option
8 Ohms or 100V line speaker output
2U 19" rack mountable (rack ears supplied)
Dimensions 433 x 320 x 89mm

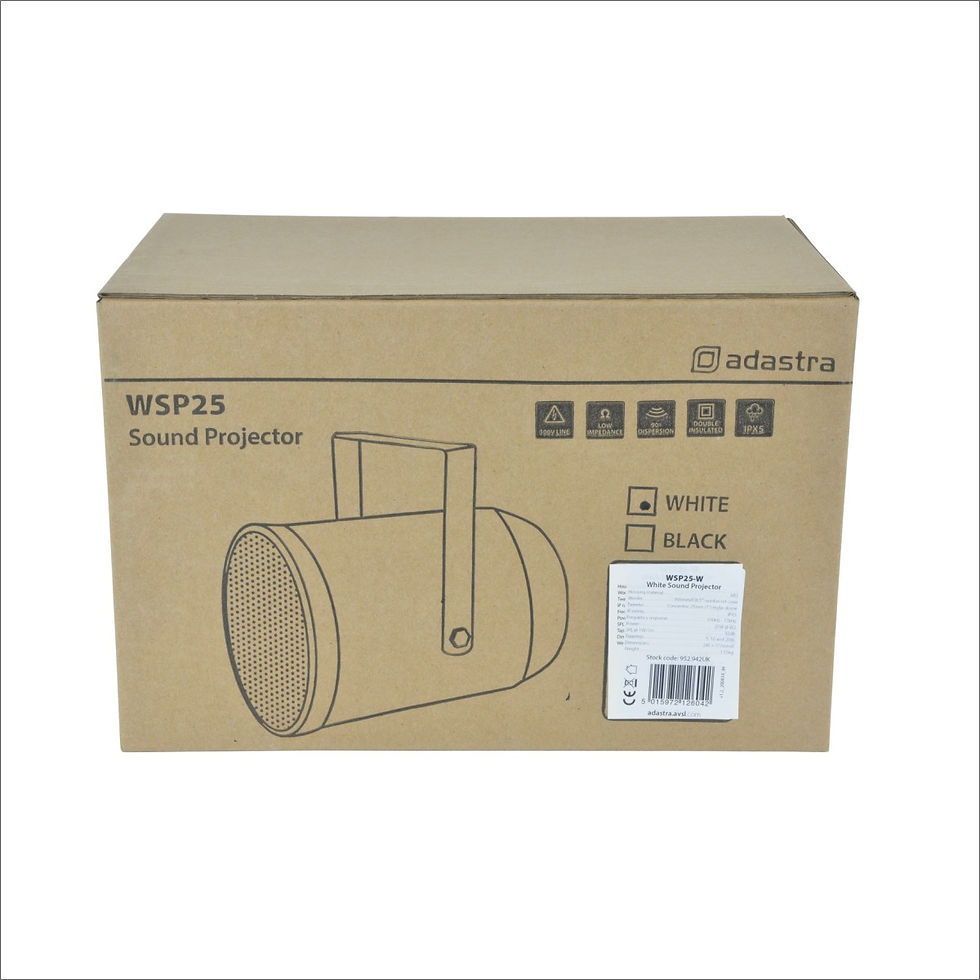

WSP25 Sound Projectors
Weatherproof sound projectors with injection-moulded body and coated steel grille. Suitable for indoor or outdoor music and speech applications. Fitted with 350mm four core input cable for different power ratings. The transformer may be bypassed internally to give an 8 Ohms, 25W load.
Adjustable steel mounting bracket
Weatherproof ABS enclosure
Woofer 165mmØ (6.5") reinforced cone
Tweeter Concentric 25mm (1") mylar dome
IP rating IPX5
Frequency response100Hz - 17kHz
Power 25W @ 8 ohms
SPL @ 1W/1m92dB
Tappings100v line - 5W, 10W, 20W
Dimensions 245 x 177mmØ
Weight 1.55kg
Cable length 350mm
Dynamic Paging Microphone
A professional quality public address microphone. The product features sturdy metal base with non slip feet, flexible gooseneck, lockable talk switch, and momentary talk function. No plug is fitted to this item.
Depth (mm): 110
Height (mm): 220
Width (mm): 160
Product Dimensions (mm): 220x160x110
Net weight (kg): 0.805
Colour: Black
Frequency Response (Hz): 80-12000
Impedance (Ohms) : 600
Packing: Box
Sensitivity (dBV/Pa): 70 +/- 3
Type: Dynamic uni-directional
