This system provides a two zone background music solution for small bars, restaurants, pubs, cafes & retail outlets. The system comes complete with a 120watt Mixer Amplifier, inputs include a balanced XLR for microphone with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs, of which one can be fed from the internal USB/SD player with built-in FM tuner and Bluetooth receiver.
This package is offered excluding any microphone or music sources so that you can mix & match the system to your requirement. Please contact our office on 0161 637 6544 if you want any further information or advise.
The speakers are wired using the 100v system; this means that wiring to the speakers is as simple as possible. Installation can be carried out by a competent handyman or electrician or you can ask Refresh AV for a quotation for installation by our qualified engineers.
System includes as standard:
1 x RM120B mixer-amplifier 100V + Bluetooth®
6 x 5.25” Cabinet speakers in either Black or White (952.714/5)
6 x Wall mount brackets
1 x 100m Speaker cable in black or white
2 x Volume attenuators
1 x 3.5mm to stereo phone for connection to audio source
System options: (To be ordered separately)
- Desk top paging microphone
- Handheld microphone for quizzes and announcements.
- Radio microphones
- Multi CD Player
- Hard drive music player
- FM Tuner
- Ipod dock
- Volume attenuator to add additional speaker zone
RM Series 5 Channel 100V Mixer Amps with Bluetooth®
100V amplifiers with integral 5 channel mixer in a 2U rack-mountable housing. Inputs include a balanced XLR for microphone with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs, of which one can be fed from the internal USB/SD player with built-in FM tuner and Bluetooth receiver. Bass & Treble EQ and Master volume control the overall output, which can power either 8 Ohms or 100V line speakers. Generous features and versatility provide a comprehensive control centre for commercial sound installations.
- 5 channel mixer
- Integral USB/SD audio player
- Integral FM tuner
- Bluetooth connectivity
- External D.C. power option
- 8 Ohms or 100V line speaker output
- 2U 19" rack mountable (rack ears supplied)
- Dimensions 433 x 320 x 89mm
BC Series - 100V Indoor Speakers
A range of indoor speakers, with ABS enclosures and a sturdy metal grille. Suitable for free standing or wall mounting via adjustable fixing bracket. The trapezoidal design allows for the enclosures to be mounted neatly into corners, making them ideal for most applications
- 2 way speaker system with crossover network
- Rotary selector switch for 100V line tappings or 8 Ohms operation
- Wall mounting bracket supplied
- Alternative M6 threaded mounting points
- Spring terminal connection
- Supplied singly
- Tappings 30W, 20W, 10W, 5W + 8 Ohms

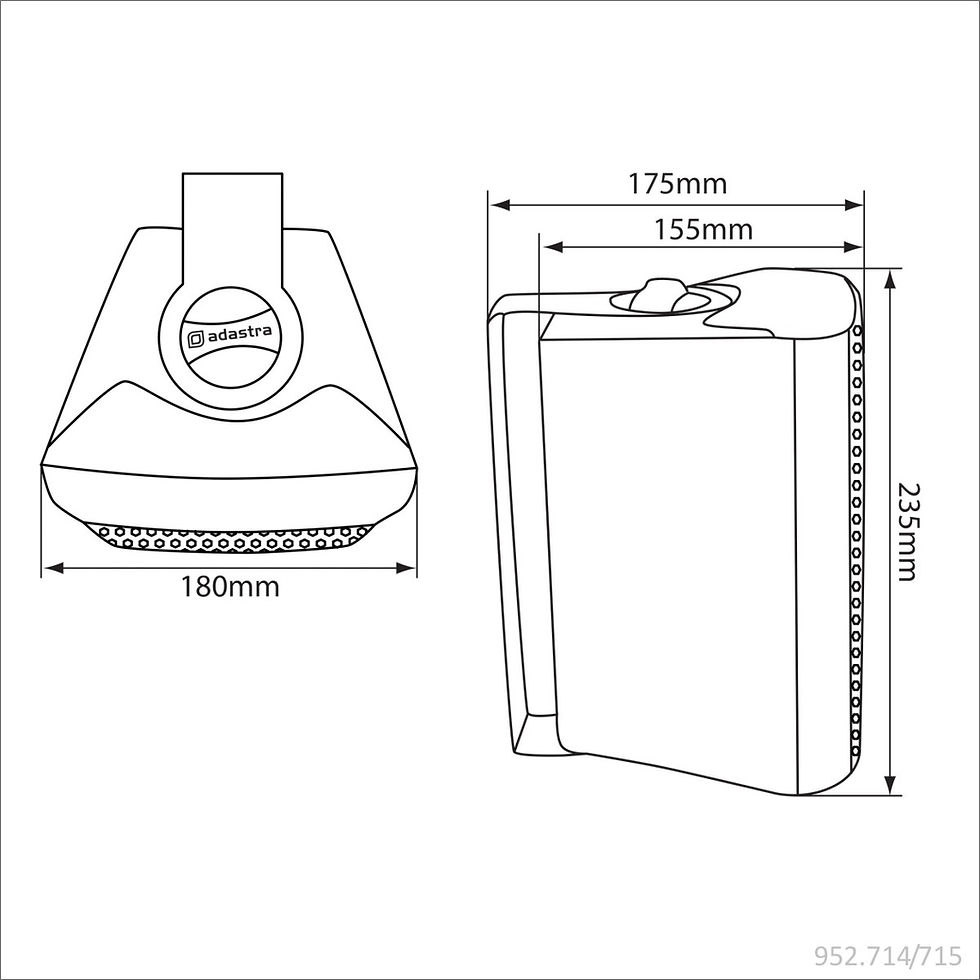

- Dimensions 180 x 235 x 175mm
